Electrolux ERVX-150/250 Filters 275×218 mm – G4 + G4 Set

Electrolux ERVX-150/250 G4 Filter Set

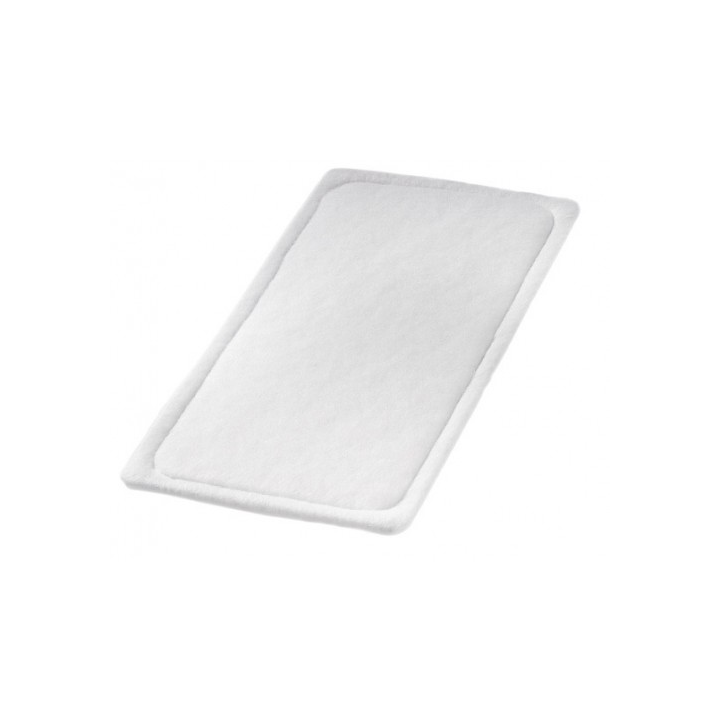

Electrolux ERVX-150/250 filters with dimensions 275×218 mm, designed for supply and exhaust air filtration in compatible Electrolux heat recovery ventilation units.

The set contains two G4 filters and is suitable for replacing the filters used in Electrolux ERVX-150 and ERVX-250 units. These high-quality recuperator filters help protect the ventilation system from dust and other airborne contaminants while maintaining proper airflow.

Filter Set Contents – G4 + G4

• 1 × G4 supply air filter – 275×218 mm
• 1 × G4 exhaust air filter – 275×218 mm

Both filters have the same dimensions and filtration class.

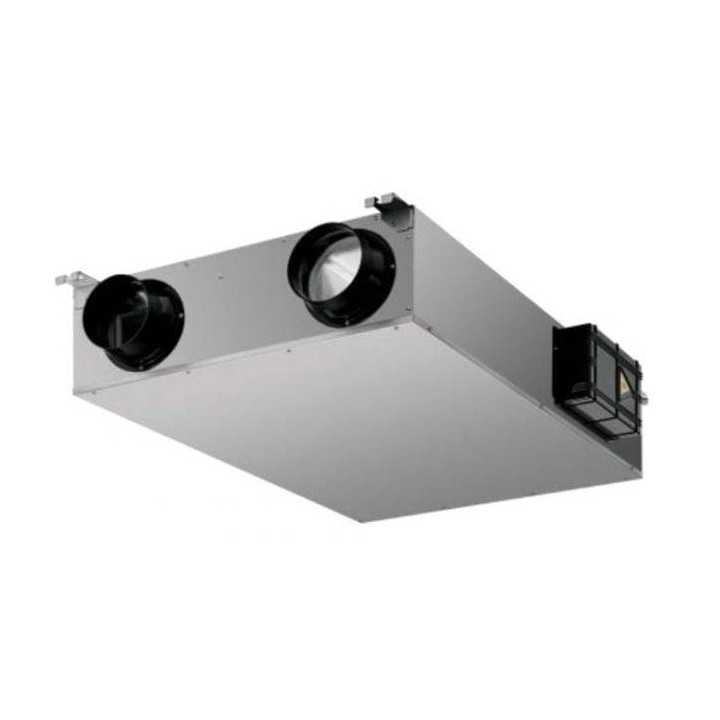

Compatible Electrolux Models

• Electrolux ERVX-150
• Electrolux ERVX-250

Before ordering, we recommend checking the dimensions of your existing filters. The required filter size is 275×218 mm.

What Does a G4 Filter Remove?

G4 filters are coarse air filters designed to capture larger airborne particles such as dust, fibres, fluff, insects and other debris.

In a heat recovery ventilation system, they help protect the heat exchanger, fans and internal components from contamination. Regular filter replacement also helps maintain proper airflow through the ventilation unit.

Technical Specifications

• Compatible models: Electrolux ERVX-150 / ERVX-250
• Filter dimensions: 275×218 mm
• Filter class: G4 + G4
• EN 779 classification: G4
• ISO 16890 classification: ISO Coarse
• Number of filters: 2
• Supply air filter: G4
• Exhaust air filter: G4
• Technology: DEEP PLEAT
• Made in the EU

DEEP PLEAT Filter Technology

The pleated filter construction provides a large filtration surface within a compact filter size. The folds are designed to maintain their structure and distribute airflow across the filter media.

• Large filtration surface
• Efficient use of filter media
• Stable pleat structure
• Good airflow through the filter
• Designed for extended service life under normal operating conditions

Filter Standards

The filter materials are manufactured according to applicable filtration and material requirements, including:

• ISO 16890
• EN 779:2012
• VDI 6022 hygiene requirements
• DIN 53438 flammability requirements

ECO Filter Construction

The filters use recycled materials in their construction, helping reduce material consumption while maintaining the required filtration performance and structural stability.

When Should Electrolux ERVX Filters Be Changed?

Electrolux ERVX ventilation filters should normally be checked every few months. A typical replacement interval is approximately 3–6 months, depending on operating conditions.

More frequent replacement may be required when the ventilation system operates in areas with:

• High outdoor dust levels
• Heavy traffic pollution
• Nearby construction work
• High pollen levels
• Pets or increased indoor dust
• Continuous ventilation operation

Regular replacement of heat recovery unit filters helps maintain airflow and protects the internal components of the ventilation system.

Why Replace Electrolux ERVX Filters Regularly?

As filters collect dust and debris, airflow resistance gradually increases. Replacing contaminated filters helps the ventilation system operate correctly and prevents excessive dirt accumulation inside the unit.

A clean G4 + G4 filter set helps protect both the supply and exhaust air paths of compatible Electrolux ERVX units.

FAQ – Electrolux ERVX-150/250 Filters

Do these filters fit Electrolux ERVX-150?

Yes. This G4 + G4 filter set is designed for the Electrolux ERVX-150 when using 275×218 mm filters.

Do these filters fit Electrolux ERVX-250?

Yes. The set is also compatible with the Electrolux ERVX-250 using 275×218 mm filters.

What are the filter dimensions?

Each filter measures 275×218 mm.

What is included in the package?

The package contains two G4 filters: one for the supply air side and one for the exhaust air side.

What does a G4 filter capture?

A G4 filter captures larger particles such as dust, fibres, fluff and other coarse airborne contaminants.

How often should Electrolux ERVX filters be replaced?

A typical replacement interval is approximately every 3–6 months. The actual interval depends on air quality, system usage and environmental conditions.

Bulk Orders

Discounts are available for larger orders of 10 filter sets or more. Contact us for an individual quotation for commercial or larger-volume orders.
