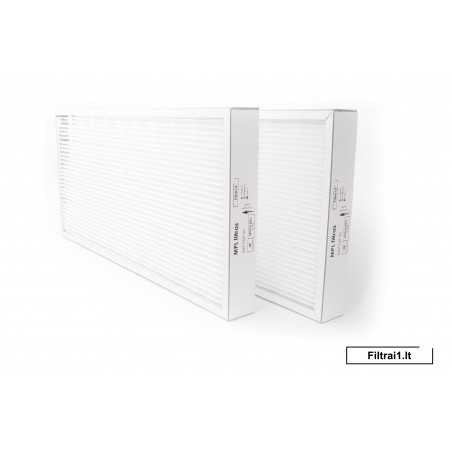

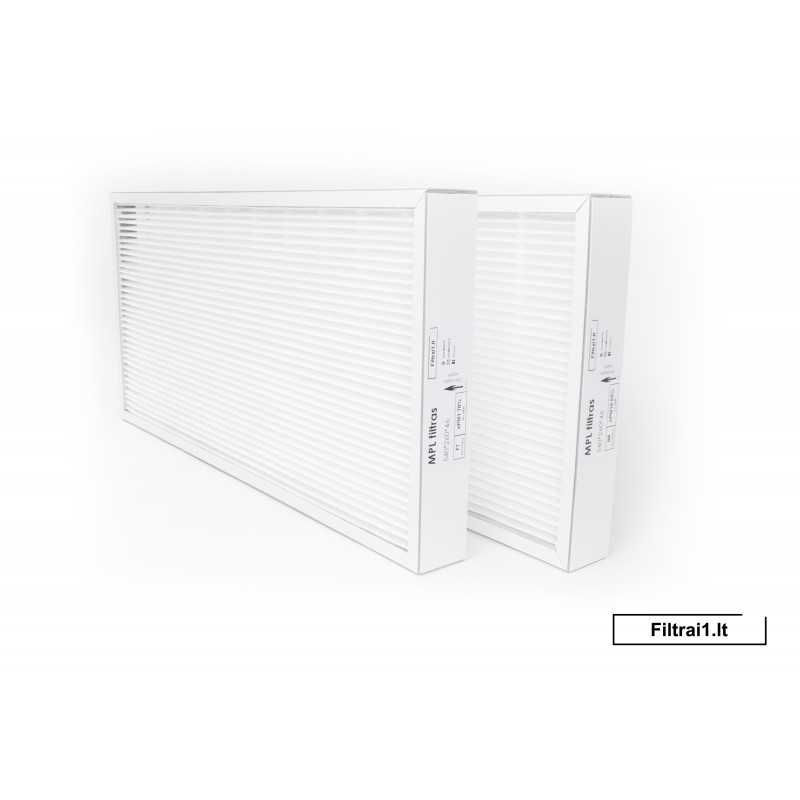

DOMEKT R 500 H FILTER SET (540X260X46)
€31.49
Domekt R 500 H Filter Set (540x260x46) compatible with Komfovent recuperators. Available in standard M5+M5 or effective F7+M5 configurations. Complete set includes both supply and extract filters with precise 540x260x46 mm dimensions. DEEP PLEAT technology ensures stable airflow and extended service life.
Fast EU delivery. Perfect fit for Domekt R 500 H units.
Date sheet
- model
- R 500 H
- Dimensions (mm)
- 540x260x46
- The set includes:
- Filters - 2 pcs.
- Delivery of goods
- Delivery cost is calculated at checkout based on your country.
Buy Domekt R 500 H Filter Set (540x260x46) online at filters1.eu. Compatible replacement filters for Komfovent Domekt R 500 H recuperators, available in standard M5+M5 or effective F7+M5 configurations with fast EU delivery.
This filter set is designed specifically for the Komfovent Domekt R 500 H heat recovery ventilation unit. The set filters both incoming supply air and outgoing extract air, protecting your HRV system while maintaining indoor air quality. Each set includes two filters with dimensions 540x260x46 mm. You can choose between the standard M5+M5 combination or the effective F7+M5 configuration depending on your air quality requirements.
Filter Class Comparison
- M5 filters (ePM10 55%) capture medium-sized particles down to 10 micrometers, including pollen, coarse dust, and larger airborne particles. Suitable for both supply and extract air positions.
- F7 filters (ePM1 65%) capture ultra-fine particles down to 0.3 micrometers, including fine dust, smoke particles, bacteria, and most combustion particles. Recommended for supply air in urban environments or areas with poor outdoor air quality.
Choose the standard M5+M5 set for general residential use with good outdoor air quality. Select the effective F7+M5 set if you need enhanced protection against fine particles or live in an urban area with traffic pollution.
Product Specifications
- Compatible model: Komfovent Domekt R 500 H
- Dimensions: 540x260x46 mm
- Set contents: 2 filters per set
- Standard set: M5+M5 (replaces original 774100060+774100060)
- Effective set: F7+M5 (replaces original 774300001+774100060)
- Filter classes: M5 (ePM10 55%), F7 (ePM1 65%)
- Frame material: Moisture-resistant cardboard
- Country of origin: EU
- Certifications: ISO 16890, EN 779:2012, VDI 6022, DIN 53438
Why Choose These Filters
- Precise fit for Komfovent Domekt R 500 H units
- Complete set with both supply and extract filters included
- Choice between standard and effective filtration levels
- Maintains stable airflow throughout the service life
- Durable construction with moisture-resistant frames
- Manufactured in compliance with EU air filtration standards
- Direct replacement for original Komfovent filters
DEEP PLEAT Technology
These filters use DEEP PLEAT technology to maximize filtration surface area within the compact 540x260x46 mm frame. The increased pleating depth provides more media area for particle capture while maintaining low pressure drop across the filter.
- Maximized filtration surface area
- Consistent airflow performance
- Extended dust holding capacity
- Longer effective service life
ECO Green Materials
Manufactured using ECO Green materials that balance environmental responsibility with reliable performance. The moisture-resistant cardboard frames provide structural stability without unnecessary plastic components, while the filter media delivers efficient particle capture throughout the recommended service interval.
Recommended Replacement Interval
Replace your Domekt R 500 H filters two to three times per year depending on outdoor air quality and system usage patterns. Regular filter replacement maintains cleaner indoor air, protects stable airflow through your ventilation system, and reduces strain on the recuperator unit. More frequent replacement may be needed in dusty environments or urban locations with high particulate pollution.
Frequently Asked Questions
How often should I replace these filters?
Replace filters every 4 to 6 months, or two to three times per year for optimal performance.
What is the difference between M5 and F7?
M5 filters capture particles down to 10 micrometers, while F7 filters capture ultra-fine particles down to 0.3 micrometers for superior air quality.
Are these filters compatible with my Domekt R 500 H unit?
Yes, these filters are precisely sized at 540x260x46 mm to fit Komfovent Domekt R 500 H recuperators.
How many filters are included in the set?
Each set includes two filters, one for supply air and one for extract air.
Are these original or compatible replacement filters?
These are high-quality compatible replacement filters that match original Komfovent specifications and fit perfectly in your unit.
Browse our complete range of Komfovent Domekt filters or explore all available recuperator filters for other HRV and MVHR systems.
Buy Domekt R 500 H Filter Set (540x260x46) online today. Fast EU delivery for all orders.
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
