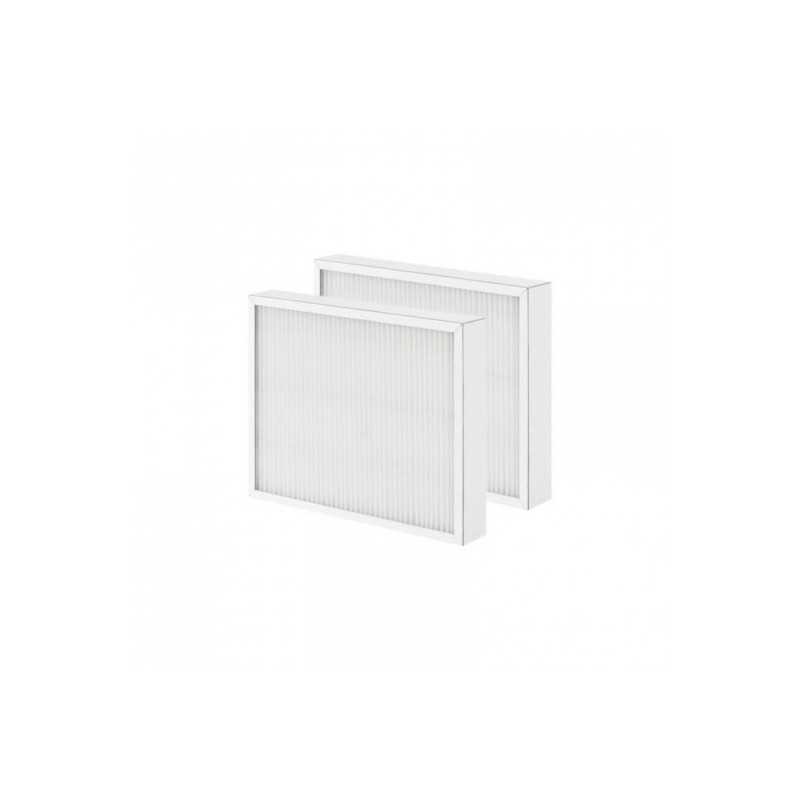

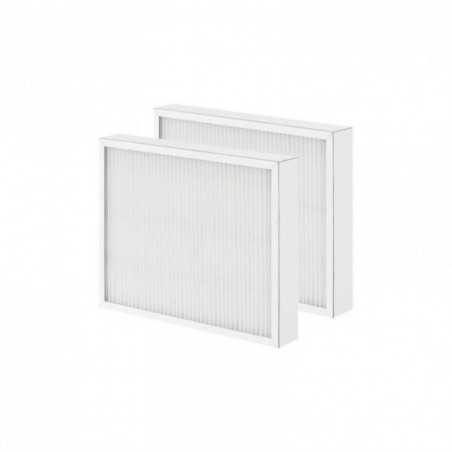

VERSO R 4000 U/H/V FILTER SET (525X510X46)
€65.11
Delivery: 10-12 days
Komfovent Verso R 4000 U/H/V Filter Set (525x510x46) includes two filters per set with your choice of Effective F7+M5 (ePM1 65%) or Standard M5+M5 (ePM10 55%) configuration. Compatible replacement for original Komfovent filters 774300041+774100040 or 774100040+774100040. DEEP PLEAT technology ensures efficient particle capture with stable airflow.
Fast EU delivery. Perfect fit for all Verso R 4000 U/H/V variants.
Date sheet
- model
- CF 3500 U/H/V
R 3000 U/H/V
R 4000 U/H/V - Dimensions (mm)
- 525x510x46
- The set includes:
- Filters - 2 pcs.
- Delivery of goods
- Delivery cost is calculated at checkout based on your country.
Buy Komfovent Verso R 4000 U/H/V Filter Set (525x510x46) online. Complete replacement filter set with two filter options: high-performance F7+M5 or standard M5+M5 for your ventilation system.
What This Filter Set Is

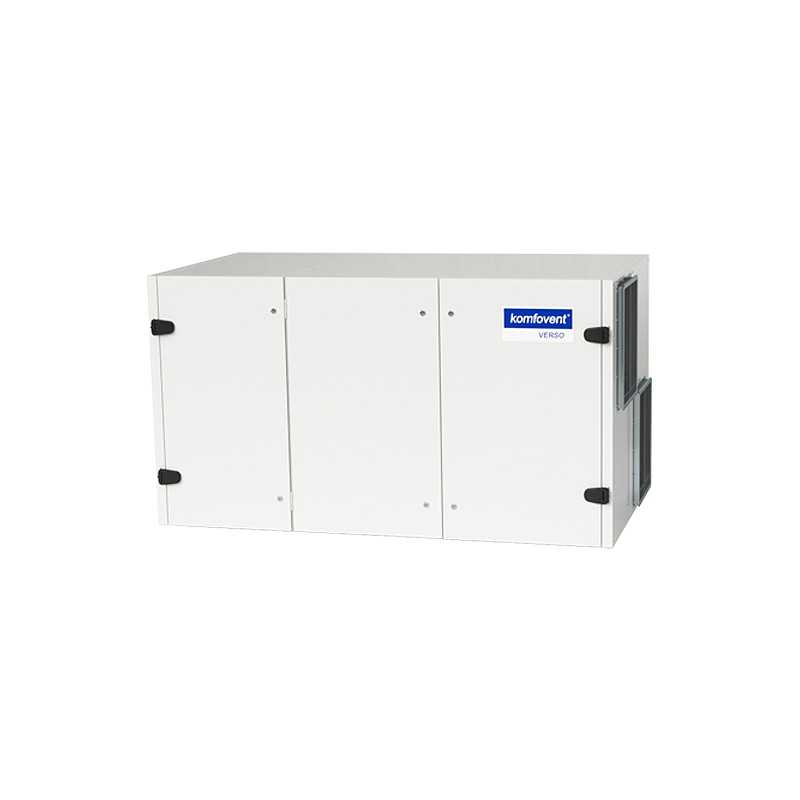

This filter set is designed specifically for the Komfovent Verso R 4000 U/H/V recuperator unit. It provides complete filtration for both supply and extract air streams, ensuring clean indoor air and optimal system performance. The set is available in two configurations: the Effective F7+M5 set for enhanced fine particle capture, and the Standard M5+M5 set for reliable medium particle filtration. Both options include two filters per set and are compatible aftermarket replacements for original Komfovent filters (774300041+774100040 for F7+M5 and 774100040+774100040 for M5+M5).
Filter Class Comparison
- M5 filters (ePM10 55%) capture medium-sized particles down to 10 μm, including pollen, coarse dust, and larger allergens. They provide balanced protection for both supply and extract air.
- F7 filters (ePM1 65%) capture ultra-fine particles down to 0.3 μm, including fine dust, bacteria, combustion particles, and aerosols. They offer superior protection for incoming fresh air.
- Choose the F7+M5 set if you need maximum indoor air quality, especially in urban areas or environments with high pollution. Choose the M5+M5 set for standard residential applications with moderate air quality demands.
For most users in urban and suburban areas, the F7+M5 combination provides the best balance of air quality and system efficiency.
Product Specifications
- Compatible model: Komfovent Verso R 4000 U/H/V
- Dimensions: 525 x 510 x 46 mm
- Set contents: 2 filters per set
- Filter options: Effective F7+M5 (ePM1 65%) or Standard M5+M5 (ePM10 55%)
- Replaces original: 774300041+774100040 (F7+M5) or 774100040+774100040 (M5+M5)
- Frame material: Moisture-resistant cardboard
- Media: ECO Green synthetic materials
- Standards compliance: ISO 16890, EN 779:2012, VDI 6022, DIN 53438
Why Choose These Filters
- Precise fit for Komfovent Verso R 4000 U/H/V units
- Complete set with both supply and extract filters included
- Two filtration options to match your air quality needs
- High-quality construction for reliable long-term performance
- Stable airflow with minimal pressure drop
- Tested to meet European ventilation standards
- Fast EU delivery from our specialized ventilation filters shop
DEEP PLEAT Technology
These filters feature DEEP PLEAT technology, which maximizes the filtration surface area within the compact filter dimensions. The deep pleating design ensures efficient particle capture while maintaining optimal airflow through your Komfovent Verso R 4000 U/H/V system.
- Increased filtration surface area
- Consistent airflow performance
- Superior dust holding capacity
- Extended filter service life
ECO Green Materials
Our Verso R 4000 U/H/V filters are manufactured using ECO Green synthetic media, which provides effective filtration without compromising environmental responsibility. The moisture-resistant cardboard frame ensures structural integrity throughout the filter's service life, while the synthetic media maintains consistent performance even in varying humidity conditions typical of HRV systems.
Recommended Replacement Interval
For optimal performance and air quality, replace your Komfovent Verso R 4000 U/H/V filters 2 to 3 times per year, depending on local air quality, usage patterns, and system runtime. Regular replacement maintains clean indoor air, protects efficient airflow, and reduces strain on your recuperator unit. If you notice reduced airflow or increased system noise, consider replacing filters earlier than scheduled.
Frequently Asked Questions
How often should I replace these filters?
Replace filters 2 to 3 times per year, typically every 4 to 6 months depending on air quality and system usage.
What is the difference between M5 and F7 filters?
M5 filters capture particles down to 10 μm, while F7 filters capture ultra-fine particles down to 0.3 μm for superior air quality.
Are these filters compatible with my Verso R 4000 unit?
Yes, these filters are precisely sized for all Verso R 4000 U/H/V variants and replace original Komfovent filters.
How many filters are included in the set?
Each set includes 2 filters: one for supply air and one for extract air.
Are these original or compatible replacement filters?
These are high-quality compatible aftermarket filters that match or exceed original specifications.
Can I mix different filter classes in my system?
Yes, the F7+M5 combination uses F7 for incoming air and M5 for outgoing air, which is the recommended setup.
Will these filters fit both horizontal and vertical Verso R 4000 units?
Yes, the 525x510x46 size fits all Verso R 4000 U/H/V configurations (upflow, horizontal, and vertical).
Browse our complete range of Komfovent Verso HRV filters or explore all recuperator filters available for fast EU delivery.
Buy Komfovent Verso R 4000 U/H/V Filter Set (525x510x46) online. Fast EU delivery with reliable fit and performance guaranteed.
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
