BRINK ADVANCE FILTER SET (180X148X25)
€20.97

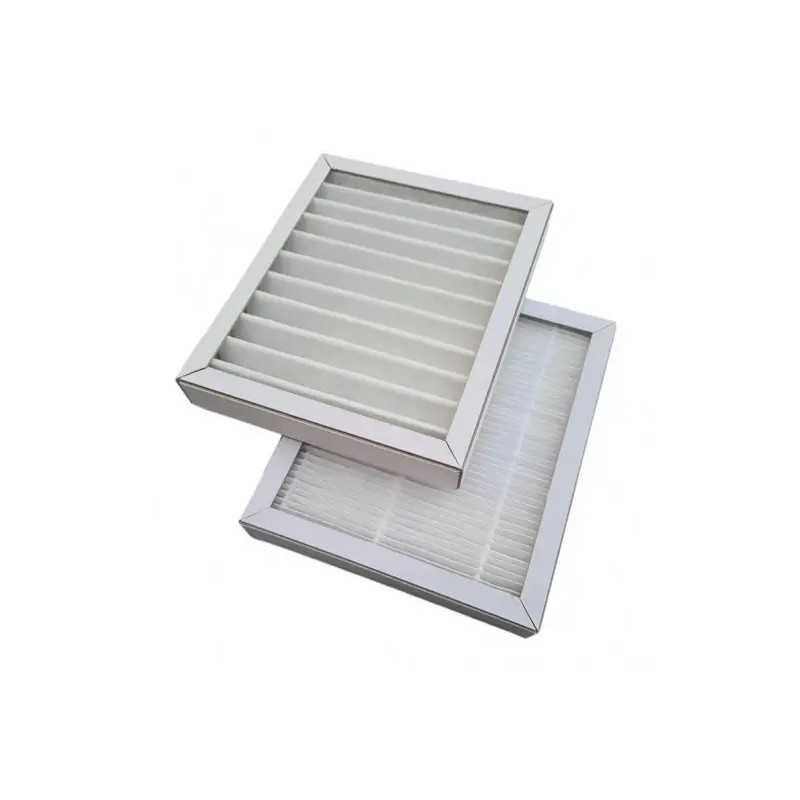

Complete F7+G4 filter set for Brink Advance recuperators. 180×148×25mm dimensions, DEEP PLEAT technology, moisture-resistant frames. Made in Lithuania with ECO Green materials.
Date sheet
- Dimensions (mm)
- 180X148X25
- The set includes:
- Filters - 2 pcs.
- Delivery of goods
- Delivery cost is calculated at checkout based on your country.
- model
- Advance
Buy BRINK ADVANCE FILTER SET (180X148X25) online — effective F7+G4 replacement filters for optimal indoor air quality and complete system protection.
This filter set is designed specifically for Brink Advance heat recovery ventilation units. The set provides comprehensive air filtration for both incoming fresh air and outgoing extract air, ensuring your HRV system operates efficiently while maintaining excellent indoor air quality. Each set includes two filters engineered to exact specifications, offering a reliable aftermarket solution that matches original equipment performance.
What Are Brink Advance Replacement Filters
Brink Advance recuperators require regular filter replacement to maintain optimal performance and indoor air quality. This compatible filter set provides both supply and extract air filtration in a single convenient package. The F7+G4 configuration delivers balanced protection: the F7 filter captures fine particulates from incoming outdoor air, while the G4 filter protects the heat exchanger from dust and debris in the extract airflow. Both filters measure 180×148×25mm and install directly into your Brink Advance unit without modification.
Filter Class Comparison: F7 vs G4
- F7 Filter (ePM1 70%): Installed on the supply air side, this filter captures ultra-fine particles down to 0.3 μm including pollen, fine dust, mold spores, and combustion particles. Provides effective protection for occupants with allergies or respiratory sensitivities. Classified as ePM1 70% under ISO 16890 standards.
- G4 Filter: Installed on the extract air side, this filter retains medium-sized particles down to 10 μm including household dust, textile fibers, and larger airborne debris. Protects the heat exchanger core from contamination and extends system lifespan.
- Recommendation: The F7+G4 combination offers the best balance of indoor air quality protection and system efficiency for most residential and light commercial applications. This configuration is suitable for typical European environments and meets ventilation hygiene standards.
Product Specifications
- Compatible Model: Brink Advance recuperator
- Dimensions: 180×148×25mm (each filter)
- Set Contents: 2 filters (1× F7 supply filter, 1× G4 extract filter)
- Filter Classes: F7 (ePM1 70%) + G4
- Frame Material: Moisture-resistant cardboard
- Country of Origin: Lithuania
- Certifications: VDI 6022 hygiene class, DIN 53438 flammability standard
- Construction: ECO Green materials, DEEP PLEAT technology
Why Choose These Brink Advance Filters
- Confirmed dimensional compatibility with Brink Advance units — precise 180×148×25mm sizing ensures proper fit and seal
- Complete filter set solution — both supply and extract filters included for total system maintenance
- Superior particle capture efficiency — F7 classification provides significantly better filtration than standard G4 filters on incoming air
- Extended filter surface area through DEEP PLEAT design reduces pressure drop and prolongs filter life
- Moisture-resistant frame construction prevents deformation in humid conditions typical of heat recovery systems
- Manufactured to European hygiene and safety standards — VDI 6022 and DIN 53438 compliance
- Fast EU delivery from filters1.eu specialized ventilation filter supplier
DEEP PLEAT Technology
These filters utilize DEEP PLEAT manufacturing technology to maximize the filtration surface area within the standard 180×148×25mm frame dimensions. The increased pleating depth creates more media surface contact with airflow, which reduces air resistance while improving particle capture efficiency. This design extends filter service life by distributing particle loading across a larger area, reducing the frequency of replacement intervals compared to shallow-pleat alternatives. DEEP PLEAT construction also maintains consistent airflow performance as the filter loads with particles over time.
ECO Green and Sustainability
Manufactured with ECO Green materials, these filters prioritize environmental responsibility without compromising performance. The moisture-resistant cardboard frame is recyclable and produced from sustainable forestry sources. The filter media contains no harmful binders or chemicals that could off-gas into your indoor air supply. When replacement is necessary, the cardboard frame can be separated for recycling in accordance with local waste management guidelines. By choosing these filters, you support responsible manufacturing practices while maintaining healthy indoor air quality.
Recommended Replacement Interval
Replace both filters every 6 months under typical residential use conditions. Households with pets, nearby construction activity, or high outdoor pollution levels should inspect filters every 3 months and replace when visibly loaded or when system airflow decreases noticeably. Commercial installations or high-occupancy buildings may require quarterly replacement. Regular filter replacement maintains optimal heat recovery efficiency, reduces energy consumption, and prevents system strain. Mark your calendar or set a reminder to ensure timely filter changes and consistent indoor air quality.
Frequently Asked Questions
Are these filters compatible with all Brink Advance models?
These filters are designed for Brink Advance recuperators requiring 180×148×25mm filter dimensions. Verify your unit's filter size before ordering to ensure proper fit.
Can I use two F7 filters instead of the F7+G4 combination?
While possible, using F7 filters on both sides increases system resistance and energy consumption without significant air quality benefit. The extract air does not require F7 filtration as it is leaving the building. The F7+G4 combination is recommended for optimal efficiency.
How do I know which filter goes on which side?
Install the F7 filter on the supply (incoming outdoor air) side and the G4 filter on the extract (outgoing indoor air) side. Consult your Brink Advance manual for specific filter compartment locations.
What is the difference between F7 and ePM1 70%?
F7 is the classification under the older EN 779:2012 standard, while ePM1 70% is the equivalent classification under the current ISO 16890 standard. These filters meet both standards.
Will these filters fit if my current filters are a different brand?
Yes, if your current filters measure 180×148×25mm, these filters will fit regardless of the original brand. Filter dimensions are standardized, making cross-brand compatibility straightforward.
Related Ventilation Filters
Explore our complete range of compatible replacement filters for Brink recuperators and other leading HRV brands including Komfovent, Zehnder, Vallox, and Dantherm units. All filters available with fast EU-wide delivery from filters1.eu.
Order your BRINK ADVANCE FILTER SET (180X148X25) today for fast EU delivery and ensure your heat recovery system continues operating at peak efficiency.
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
