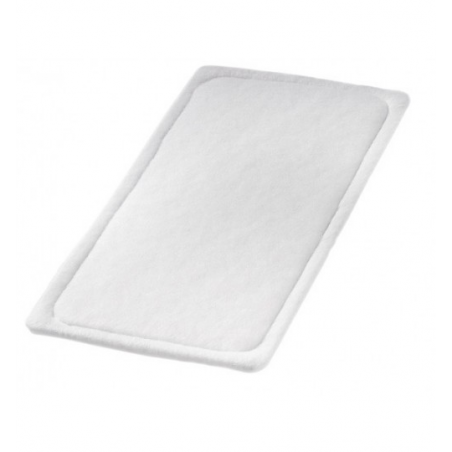

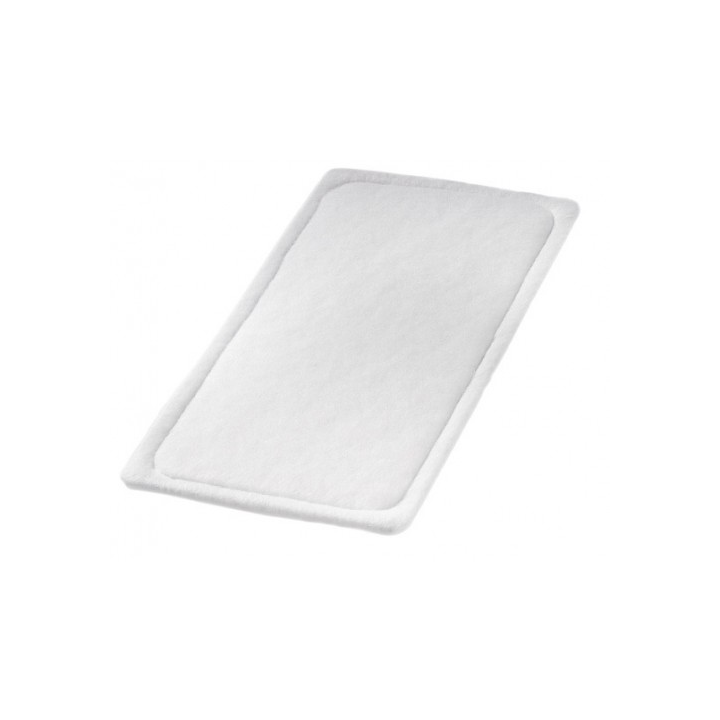

Brink Renovent Excellent 180 / Renovent Small FILTER SET (290x136x5)

Buy Brink Renovent Excellent 180 / Renovent Small filter set (290x136x5) online — economical G4+G4 configuration engineered for balanced ventilation and long service life.

What is the Brink Renovent Excellent 180 / Renovent Small Filter Set?

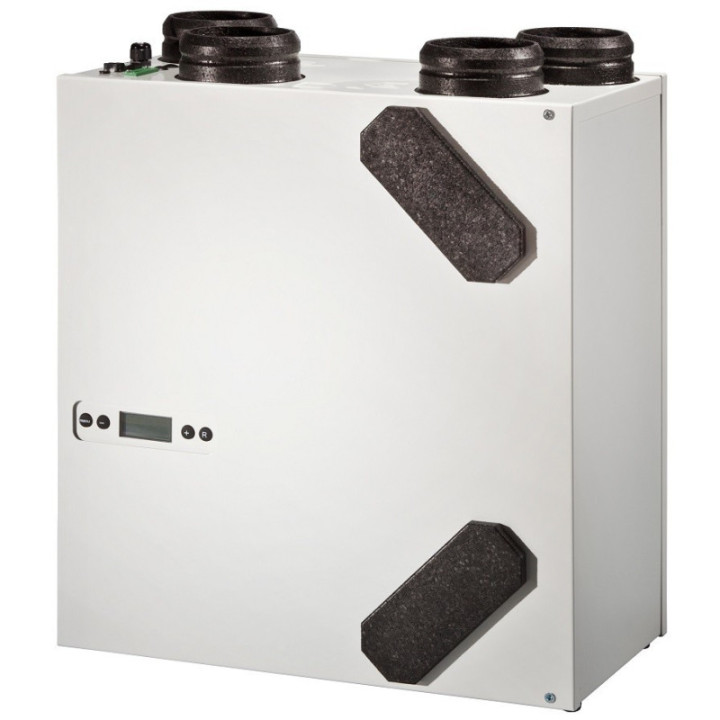

This replacement filter set is specifically designed for Brink Renovent Excellent 180 and Renovent Small heat recovery ventilation systems. The set ensures continuous filtration of both incoming supply air and outgoing extract air, maintaining indoor air quality and protecting the recuperator heat exchanger from particle buildup. This economical G4+G4 configuration is ideal for residential environments with standard air quality requirements, offering reliable protection at a cost-effective price point.

Filter Class Comparison: Understanding G4 Performance

Choosing the right filter class depends on your indoor air quality needs and local environment:

• G4 filters: Capture medium-sized particles including pollen, coarse dust, and textile fibres. Effective protection against particles down to 10 μm. Suitable for standard residential applications with moderate air quality demands.
• F7 filters: Capture ultra-fine particles including fine dust, combustion particles, and some bacteria. Effective protection against particles down to 0.3 μm. Recommended for urban environments, allergy sufferers, or households requiring enhanced air purification.
• Recommendation: The G4+G4 configuration provides economical baseline protection for most homes. If your property is located in a high-traffic urban area or household members have respiratory sensitivities, consider upgrading to an F7+G4 set.

Product Specifications

• Compatible models: Brink Renovent Excellent 180, Brink Renovent Small
• Filter dimensions: 290 x 136 x 5 mm (each filter)
• Set contents: 2 filters (G4 supply + G4 extract)
• Filter class: G4 / Coarse (ISO 16890)
• Country of origin: Lithuania
• Frame material: Moisture-resistant cardboard
• Media type: ECO Green synthetic material
• Compliance: EN 779:2012, ISO 16890, VDI 6022

Why Choose These Brink Replacement Filters

• Confirmed dimensional compatibility with Brink Renovent Excellent 180 and Renovent Small systems
• Complete set solution — both supply and extract filters included
• Economical G4+G4 configuration reduces replacement costs while maintaining effective filtration
• Manufactured in Lithuania with fast delivery across EU markets
• Moisture-resistant frame construction prevents deformation in humid conditions
• Large filtering surface area maximizes particle capture and extends operational life
• High-quality aftermarket alternative to original Brink filters at competitive pricing

DEEP PLEAT Technology

These Brink filters incorporate DEEP PLEAT manufacturing technology, which creates precisely engineered pleats that maximize the filtering surface area within the compact 290x136x5 mm dimensions. This advanced construction delivers superior airflow characteristics and extended service intervals compared to standard flat-panel designs.

• Increased particle-holding capacity reduces pressure drop over time
• Optimized pleat geometry maintains consistent airflow through the recuperator
• Enhanced structural stability prevents pleat collapse during operation
• Greater surface area translates to longer replacement intervals and reduced maintenance frequency

ECO Green Construction and Sustainability

These filters are manufactured using ECO Green synthetic media, which combines effective filtration performance with environmental responsibility. The moisture-resistant cardboard frame provides structural integrity without relying on metal components, making the filters easier to dispose of responsibly at end-of-life. Manufacturing in Lithuania ensures shorter transportation distances for EU customers, reducing carbon footprint associated with logistics.

Recommended Replacement Interval

For optimal system performance and indoor air quality, replace both filters every 6 months under normal residential conditions. Properties located near busy roads, industrial areas, or agricultural zones may require more frequent replacement every 3-4 months. Monitor pressure drop indicators on your Brink unit if available, or visually inspect filters quarterly. Clogged filters reduce ventilation effectiveness and increase energy consumption as the system works harder to maintain airflow.

Frequently Asked Questions

Are these filters compatible with both Brink Renovent Excellent 180 and Renovent Small models?
Yes, both recuperator models use the same 290x136x5 mm filter dimensions. This set is confirmed compatible with both systems.

What is the difference between G4+G4 and F7+G4 filter sets?
The G4+G4 economical set uses G4 class filters for both supply and extract positions, providing standard protection. The F7+G4 configuration uses a higher-performance F7 filter for incoming supply air, capturing finer particles including allergens and combustion residues, while maintaining a G4 filter for outgoing extract air.

How often should I replace these Brink filters?
Replace every 6 months under typical residential use. Increase frequency to every 3-4 months in environments with higher dust levels, nearby construction, or heavy traffic exposure.

Can I install these filters myself?
Yes, filter replacement in Brink Renovent systems is designed for user-level maintenance. Consult your unit manual for specific access panel location and installation orientation. Ensure filters are seated correctly to prevent air bypass.

Are these original Brink filters or aftermarket replacements?
These are high-quality aftermarket replacement filters manufactured to match original specifications. They provide equivalent performance and compatibility at competitive pricing with fast EU delivery.

Related Products and Resources

Explore our complete range of Brink recuperator filters at filters1.eu. We stock filter sets for all major Brink models including Renovent Excellent, Renovent Sky, Renovent HR, and Elan series. All filter sets ship quickly across Ireland, UK, Netherlands, Belgium, Finland, Sweden, Denmark, Austria, Switzerland and throughout the EU.

Order your Brink Renovent Excellent 180 / Renovent Small filter set (290x136x5) today for fast EU delivery — maintain optimal ventilation performance and indoor air quality with reliable replacement filters engineered for precise compatibility.
