RECOM 2SR FILTER SET (284X103X60)
€19.90
Date sheet
- Dimensions (mm)
- 284X103X60
- The set includes:
- Filters - 2 pcs.
- Delivery of goods
- €2.90 (free shipping to parcel machines from €50)
- Recom modelis
- 2SR
Specific References
- MPN
- K00185

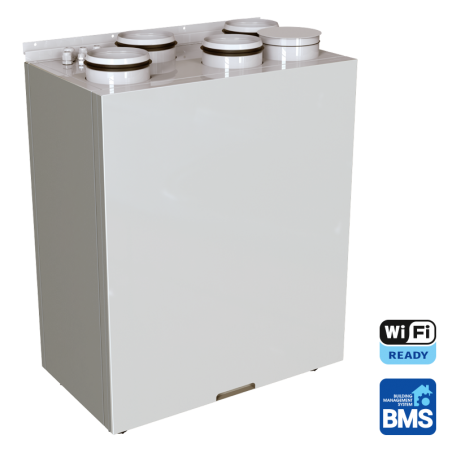

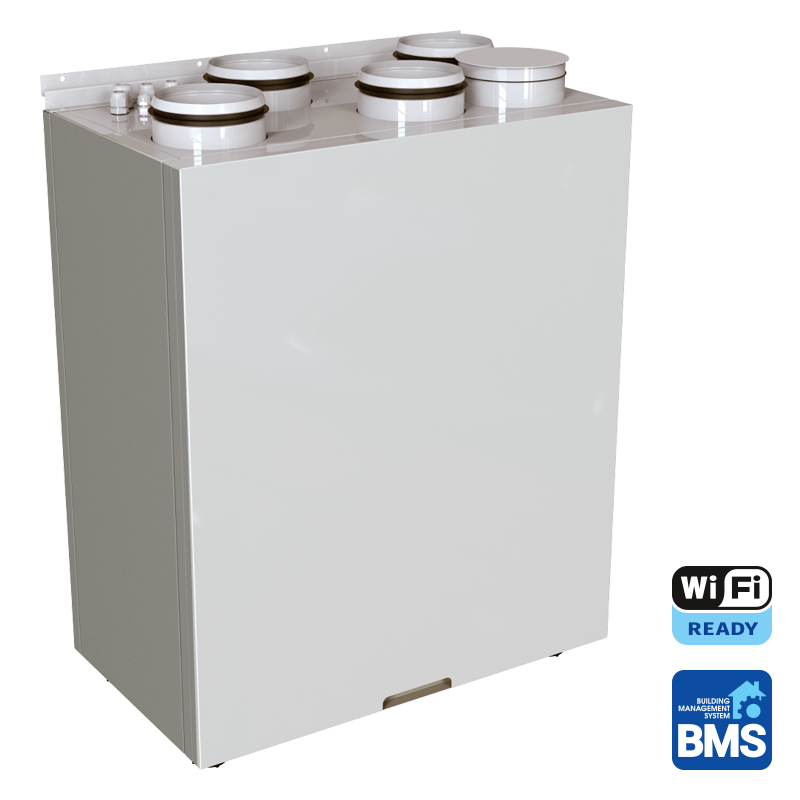

Filter set suitable for RECOM 2SR heat recovery unit. The filter set is designed for filtering supply and exhaust air.
Compatibility
Filters are suitable for this heat exchanger model:
- - RECOM 2SR
Package options
- - Standard set (G4 + G4) – two filters suitable for replacing original RECOM filters, intended for everyday use.
- - Efficient set (F7 + G4) – two filters that ensure a higher level of filtration of the supplied air, suitable instead of original RECOM filters.
Differences between G4 and F7 filters
The G4 filter is designed for filtering large air particles. It traps dust and other solid particles with a size exceeding approximately 10 μm, such as soil particles, larger pollen grains, plant debris, sawdust, sand and textile fibers. The G4 filter is used for filtering supply and exhaust air and helps to reduce the accumulation of dirt in the ventilation system.
The F7 filter is designed for filtering fine air particles and is used only on the supply air side. It traps fine solid particles such as smog, combustion particles, smoke, spores and other pollutants with a size of approximately 0.3-1 μm, helping to improve the quality of the supply air.
RECOM 2SR filter set specification
- - filter dimensions: 284X103X60 mm (G4 and F7).
- - made in Lithuania.
- - moisture-resistant cardboard frame.
- - large filtration area.
- - ECO green solution.
Compliance with standards
- - VDI 6022 – ventilation hygiene standard.
- - DIN 53438 – flammability classification.
- - ISO 16890 – air filter quality standard.
- - EN 779:2012 – filtration classification.
Recommendation
- - it is recommended to change the filters of the heat recovery unit at least 2-3 times a year.
ECO green
Filtrai1.lt filters feature "ECO green" features. They are made from recycled and durable materials, while maintaining high filtration efficiency.
Hygiene standard VDI 6022
The filters we sell comply with the VDI 6022 ventilation hygiene standard. This means that the filter materials used do not create conditions for bacterial growth.
Flammability DIN 53438 classification
Filters sold at Filtrai1.lt are tested and meet the requirements of DIN 53438 flammability classification.
DEEP PLEAT technology
The filters are manufactured using DEEP PLEAT technology, which allows:
- - maintain a regular V-shape when crimping the material.
- - maximize the use of the filter material area.
- - extend filter life and efficiency.
Discount:
Buy 10 sets or more and /lt/ susisiekite-su-mumis">susisiek for a better price.
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
