VALLOX 145 MV/SE / VALLOPLUS 510 FILTER SET (306X288X96) (No. 28)
€33.28
Date sheet
- Dimensions (mm)
- 304x286 G4
306x288x96
500x295 G4 - The set includes:
- Filters - 3 pcs.
- Delivery of goods
- €2.90 (free shipping to parcel machines from €50)
- Vallox models
- ValloPlus 510 MV
ValloPlus 510 SC
ValloPlus 510 SE
Vallox 145 MV
Vallox 145 SE

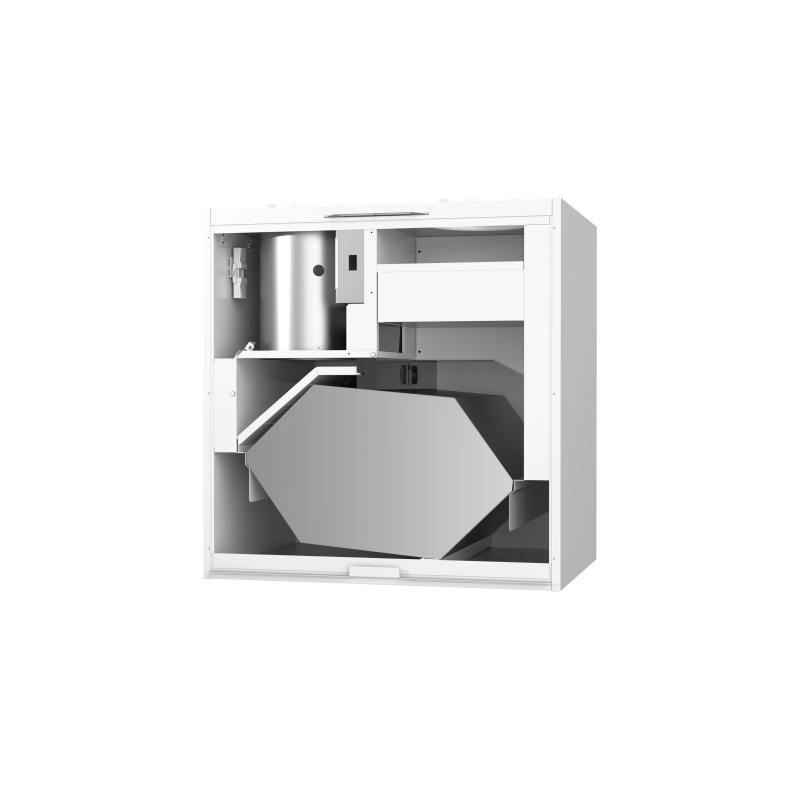

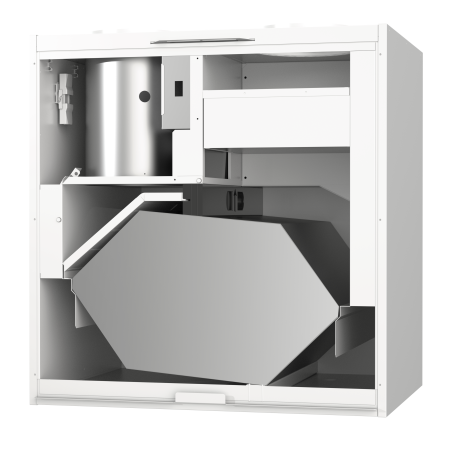

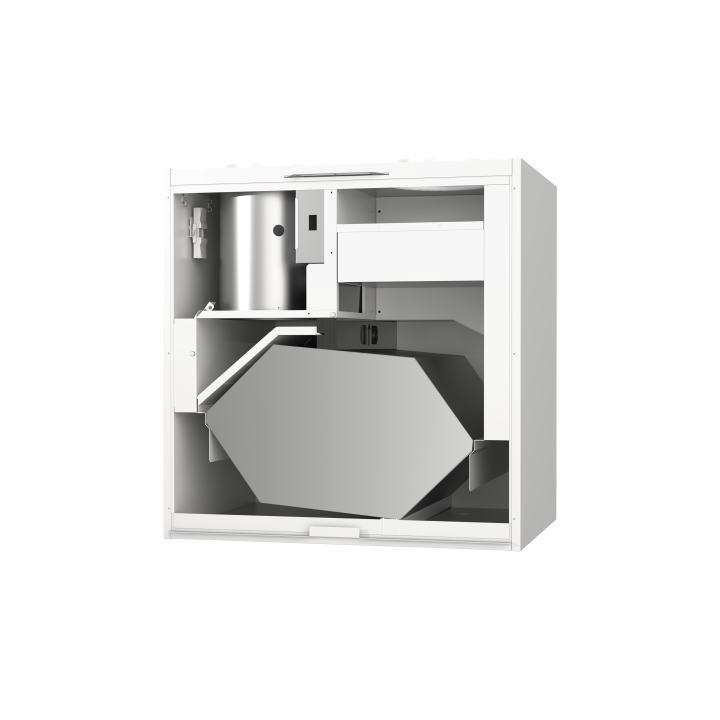

Filter set suitable for Vallox 145 MV/SE / ValloPlus 510 (306X288X96) heat exchanger. The filter set is designed for filtering supply and exhaust air.
Vallox 145 MV/SE / ValloPlus 510 – user benefits
The Vallox 145 MV/SE / ValloPlus 510 filter set is designed to ensure effective air filtration and stable operation of the heat exchanger during daily use. Higher-class filtration helps maintain better indoor air quality.
- - reduces the amount of dust and particulate matter in the supplied air,
- - improves the indoor microclimate,
- - effective protection against pollen and smog particles,
- - protects the heat exchanger and fans from contamination,
- - maintains stable air flow and quiet operation of the device.
Efficient filter set
The effective set consists of three filters (G4 + G4 + F7) that are suitable instead of the original Vallox 145 MV/SE / ValloPlus 510 filters. The F7 filter is installed on the supply air side and ensures a higher level of supply air purification. This set is recommended for allergy sufferers and those living in areas with higher air pollution.
Differences between F7 and G4 filters
The G4 filter is used for filtering supply and exhaust air. It traps medium-sized particles and provides protection against solid particles with a size of about 10 μm.
The F7 filter is used only for filtering the supply air. It traps extremely fine particles and effectively protects against solid particles with a size of about 0.3 μm.
Compatibility
The filters are suitable for the following Vallox heat recovery unit models:
- - Vallox 145 MV
- - Vallox 145 SE
- - ValloPlus 510 SE
- - ValloPlus 510 SC
- - ValloPlus 510 MV
- - filter set No. 28
VALLOX 145 MV/SE / ValloPlus 510 filter set specification
Filter dimensions:
G4 filters: 304X286 mm and 500X295 mm
F7 filter: 306X288X96 mm
Technical characteristics:
- - made in Lithuania,
- - moisture-resistant cardboard frame,
- - large filtration area,
- - ECO green solution,
- - long service life.
Compliance with standards:
- - VDI 6022 – ventilation hygiene standard,
- - DIN 53438 – flammability classification,
- - ISO 16890 – air filter quality standard,
- - EN 779:2012 – filtration classification (G4 / F7).
ECO green
Filtrai1.lt filters feature "ECO green" features. They are made from recycled and durable materials, maintaining high filtration efficiency and durability.
Hygiene standard VDI 6022
The filters sold by Filtrai1.lt comply with the VDI 6022 ventilation hygiene standard. This means that the filter materials used do not create conditions for the growth of bacteria.
Flammability DIN 53438 classification
Filters sold at Filtrai1.lt are tested and meet the requirements of DIN 53438 flammability classification.
DEEP PLEAT technology
The filters are manufactured using DEEP PLEAT technology. The pleated filter material maintains a regular V-shape, allowing for maximum use of the filtration area and extending the filter's service life.
Recommended replacement frequency:
It is recommended to change the heat exchanger filters at least 2-3 times a year, and more often if the contamination is greater.
Discount:
Buy 10 sets or more and contact us for a better price.
| Filter Type / EN 779 | ISO 16890 | >10 µm | PM10 | PM2.5 | PM1 | Gas/LOI | Typical Pollutants |
|---|---|---|---|---|---|---|---|
| G1 | ISO Coarse | ~40% | <10% | ~0% | ~0% | Large dust: sand grains, textile fibers, carpet lint, plant residues, insect parts, etc. | |
| G2 | ISO Coarse | ~50% | <15% | ~0% | ~0% | Sawdust, hair, large fabric shreds, paint chips, surface rust particles. | |
| G3 | ISO Coarse | ~60% | <25% | ~5% | ~0% | Larger household dust, lint, animal hair, some airborne pollen. | |
| G4 | ISO Coarse | 65-75% | 25-35% | 10-15% | <5% | Larger pollen grains, soil and sand impurities, textile fibers. | |
| M5 | ISO ePM10 ≥50% | ~80% | 50–65% | 20–30% | 10–15% | Most pollen, mold spores, pet dander, typical house dust. | |
| M6 | ISO ePM10 (60–80%) | ~90% | 65–80% | 30–45% | 15–25% | Construction material dust, concrete and cement powders, ash and other friable material particles. | |
| F7 | ISO ePM2.5 (50–65%) | >90% | 75–90% | 50–65% | 30–45% | Some bacteria, smog and tobacco smoke particles, combustion product dust, mold spores, wildfire smoke. | |
| F8 | ISO ePM2.5 (65–80%) | >95% | 85-95% | 65–80% | 45-60% | Fine fungal spores, airborne pollutant aerosols and other fine solid particles. | |
| F9 | ISO ePM1 (80-95 %) | >95% | >95% | >90% | 80-95% | Diesel engine soot, some airborne viruses, transport and industrial fumes, very fine combustion particles, extremely fine dusts and secondary organic aerosols formed from chemical reactions in the atmosphere. |
